Cube Ice Machine

The cube ice machine is a fully automatic system for producing edible ice. It features automatic adjustment of cube thickness, automatic adaptation to ambient temperature, water replenishment, ice production, and ice discharge. The entire process is fully autonomous, and the produced ice cubes are uniform, aesthetically consistent, and of constant thickness.

The equipment incorporates innovative flat-wall heat exchange technology and hot gas circulation defrosting technology, effectively solving common issues in small ice machines such as low production capacity, high energy consumption, and unstable operation, ensuring efficient and reliable ice production.

Advantage of Cube Ice Machine

  • Stainless steel with certified qualified material
  • Ensures stable performance, high-quality ice, and improved profitability
  • Intelligent PLC controller with touchscreen display
  • Fault log availability and instant troubleshooting
  • Adjustable shutdown time at will
  • Multilingual version

Aplications of Cube Ice Machine

  • Restaurants and hospitality
  • Food processing
  • Medical and hospital sector
  • Seafood and fishing processing
  • Beverage industry
  • Supermarkets and food retail stores

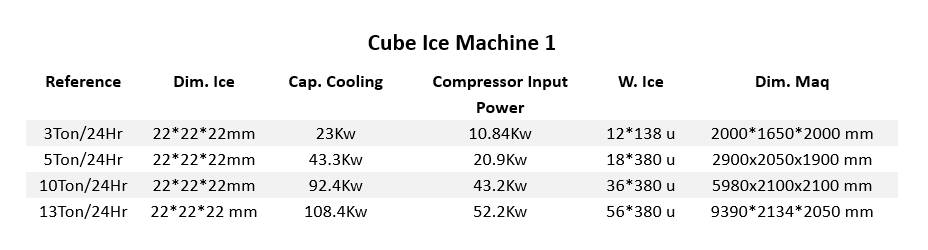

Characteristics

Material

Stainless steel

Power Supply

3p/380V/50Hz. 3p/220V/60Hz. 3p/380V/60Hz. 3p/460V/60Hz

Ambient Temperature

35ºC

Refrigerant

R404A. R22. R17. R507

Capacity

3T/5T/10T/13T cada 24 Hr

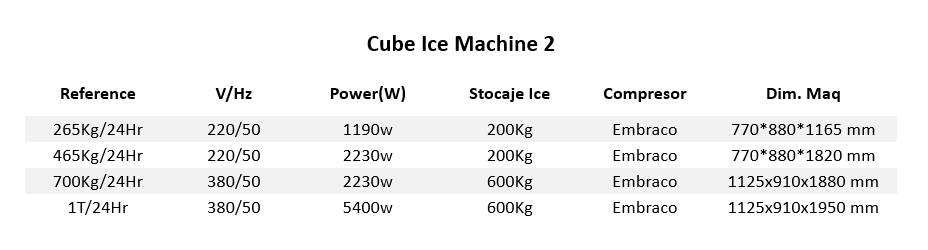

Capacity Details

→ View Details

Capacity

265Kg/465Kg/700Kg/1T cada 24 Hr

Capacity Details

→ View Details

Trazabilidad de Componente Importante

EU / USA

*Please consult with our technical department for different working conditions and design parameters.
